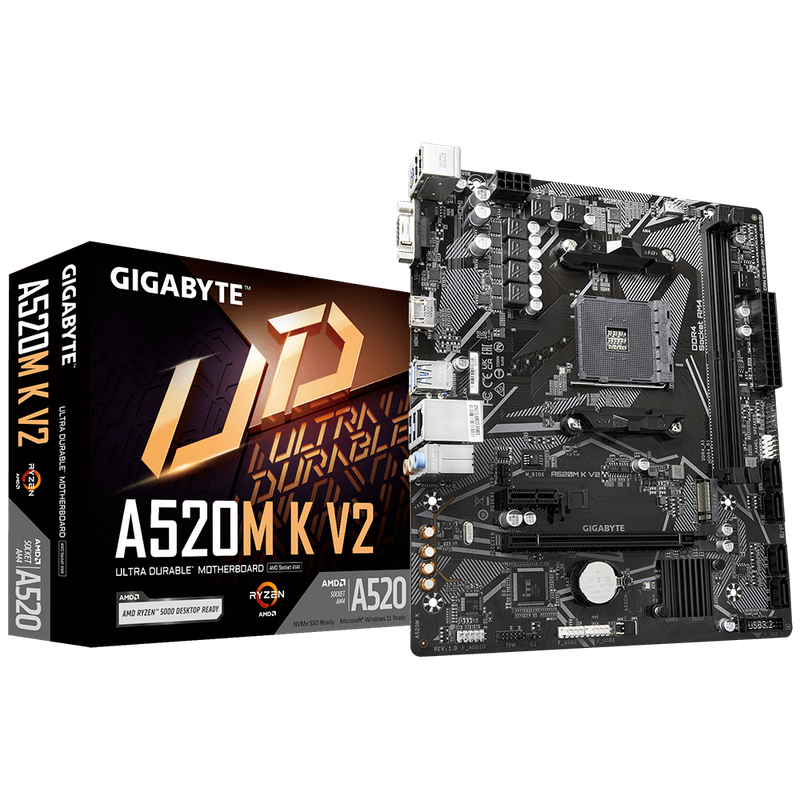

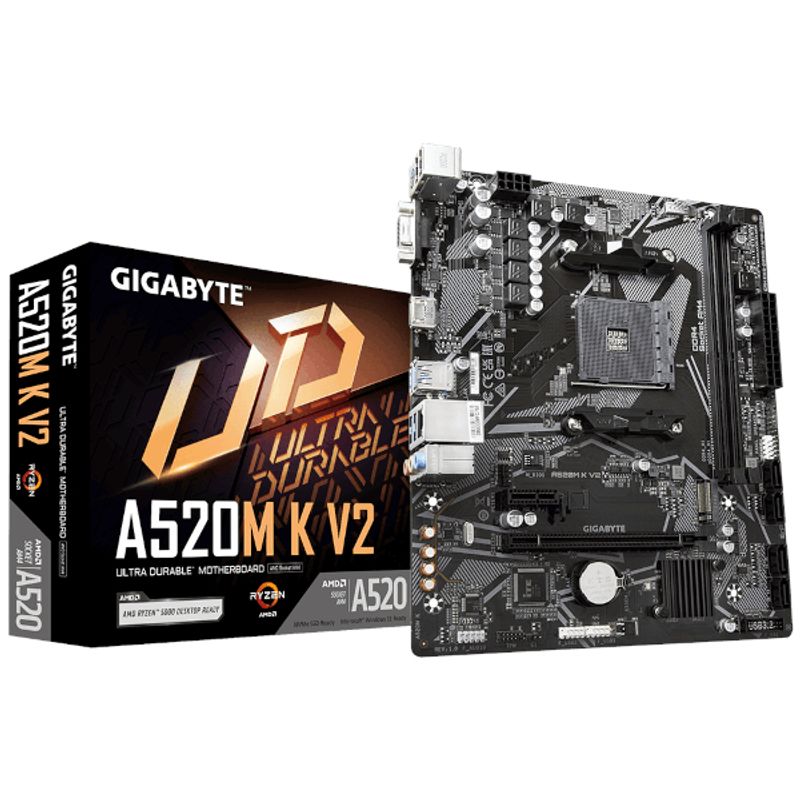

Gigabyte A520M K V2 matična ploča, Socket AM4, AMD A520, 2x DDR4, max. 64 GB, ATX/mATX
Stavi u listu želja
Postavi obavijest o cijeni
Povijest najniže cijene
Podijeli
Prijavi grešku
GIGABYTE MB Sc AM4 A520M K V2, AMD A520M, 2xDDR4, 1xHDMI, 1xVGA, mATX
56,51 €
GIGABYTE Motherboard A520M K V2 - Socket AMD AM4 - AMD A520, A520M K V2
206313 The Gigabyte A520M K V2 motherboard from GIGABYTE provides a solid foundation for building a compact yet powerful PC. Designed with the micro ATX form factor, it fits in smaller cases without sacrificing connectivity and performance. This motherboard is equipped with a high-definition audio system, delivering an 8-channel audio output for an immersive sound experience. It supports a wide range of storage options, including M.2 sockets and Serial ATA-600 with RAID configuration, allowing for fast data transfer and redundancy. The USB 3.2 Gen 1 ports offer high-speed connectivity for peripherals and external storage. With support for dual channel memory architecture and unbuffered, non-ECC RAM, it ensures reliable and efficient operation. Whether you're assembling a gaming rig, a home theater PC, or a workstation, the Gigabyte A520M K V2 is a versatile choice that combines performance, flexibility, and value.
57,64 €
GIGABYTE A520M K V2 (rev. 1.0)
GIGABYTE A520M K V2 (rev. 1.0) matična ploča je kompaktan proizvod orijentiran na performanse koji zadovoljava moderne IT potrebe. Ova matična ploča radi s najnovijim AMD Ryzen procesorima za maksimalnu brzinu i učinkovitost, omogućujući korisnicima obavljanje intenzivnih računalnih aktivnosti bez ikakvih problema. A520M K V2 (rev. 1.0) podržava DDR4 memoriju, koja jamči gladak protok podataka i brzinu, bilo da se radi o igricama, razvoju softvera ili stvaranju multimedijskog sadržaja. Osim toga, opremljen je PCIe 3.0 x16 i PCIe 3.0 x1 utorima za proširenje, čime pruža visok stupanj fleksibilnosti i mogućnosti proširenja. Dizajn proizvoda nije usmjeren samo na praktičnu upotrebljivost, već i na stil i estetiku. Suptilni crni PCB dizajn i svijetla shema boja mogu biti skladna nadopuna dizajnu bilo kojeg stolnog računala. Konačno, matična ploča podržava audio izlaz i ulaz visoke rezolucije, čime korisnicima pruža izvanredno zvučno iskustvo. Matična ploča A520M K V2 (rev. 1.0) iznimno je energetski učinkovita i dugo traje, što vam s vremenom može uštedjeti novac i energiju. GIGABYTE softverska nadzorna ploča proizvoda omogućuje korisnicima jednostavno i intuitivno praćenje performansi sustava, temperature i rada. Zaključno, matična ploča GIGABYTE A520M K V2 (rev. 1.0) je idealan izbor za svakoga tko traži brzu, učinkovitu i user-friendly matičnu ploču. Podržava širok raspon računalnih aktivnosti, od jednostavnog uređivanja dokumenata do igranja igrica i stvaranja multimedijskog sadržaja. Sa svojim estetskim dizajnom i radom koji štedi energiju, ova matična ploča nije samo savršen dodatak svakom stolnom računalu, već je i dugoročno ekonomičan izbor.
59,05 €
Gigabyte A520M-K V2, AMD A520, AM4
shape factor µATX Socket AMD AM4 chipset AMD A520 CPU-Compatibility Ryzen 5000G, Ryzen 5000, Ryzen 4000G, Ryzen 3000, without TDP limitation (Manufacturer-list) RAM 2x DDR4 DIMM, dual PC4-40800U/?DDR4-5100 (OC), max. 64GB (UDIMM) Extension slots 1x PCIe 3.0 x16, 1x PCIe 3.0 x1, 1x M.2/M-Key (PCIe 3.0 x4/?SATA, 2280) external connectors 1x VGA (iGPU), 1x HDMI 2.1 (iGPU), 4x USB-A 3.0 (5Gb/?s), 2x USB-A 2.0 (480Mb/?s), 1x Gb LAN (Realtek RTL8118AS), 3x jack, 1x PS/?2 Combo Internal connectors 1x USB 3.0 Header (5Gb/?s, 2x USB 3.0), 2x USB 2.0 header (480Mb/?s, 4x USB 2.0), 4x SATA 6Gb/s (A520), 1x TPM-Header, 1x Speaker-Header, 1x Chassis Intrusion-Header Header Cooling 1x CPU fan 4-Pin, 1x fan 4-Pin Header Lighting not available buttons/Switches not available Audio 7.1 (Realtek ALC887) Graphics iGPU Wireless not available RAID level 0/?1/?10 (A520) Multi-GPU not available Power connections 1x 24-Pin ATX, 1x 8-Pin EPS12V Lighting not available BIOS 1x 16MB (128Mb) Special features audio+solid capacitors, ECC-support, onboard TPM 2.0 support (AMD fTPM)
60,23 €
Gigabyte A520M K V2 mATX utičnica za matičnu ploču AM4 VGA/HDMI/M.2/SATA/PS2
61,00 €
Matična ploča GIGABYTE A520M K V2 (Socket AMD AM4, AMD A520)
63,17 €
Matična ploča GIGABYTE A520M K V2 (Podržava AMD Ryzen 5000 seriju AM4 procesora, do 5100MHz DDR4 (OC), PCIe Gen3 x4 M.2, GbE LAN, USB 3.2 Gen 1)
Battery Battery technology: Lithium-Manganese Dioxide (LiMnO2) Number of battery cells: 1 Battery weight: 3 g Battery type: CR2032 Lithium weight per battery: 0.07 g BIOS BIOS type: UEFI AMI Clear CMOS jumper: Yes Desktop Management Interface (DMI) v
65,08 €
GIGABYTE A520M K V2
Serie - Mainboards Serie Gigabyte ULTRA DURABLE Serie Mainboard-Grundeigenschaften Hersteller GIGABYTE Chipsatz AMD A520 Formfaktor µATX Mainboard-Prozessor Prozessorfamilie AMD Prozessorsockel Sockel AM4 Unterstützte Prozessoren Ryzen 5000G, Ryzen 5000, Ryzen 4000G, Ryzen 3000, ohne TDP-Einschränkung Mainboard-Speicher Zahl der DIMM Slots 2x Maximaler Hauptspeicher 64 GB Speichertyp DDR4 Non-ECC, Un-bufferedJa unterstützter Speichertakt 2x DDR4 DIMM, dual PC4-40800U/?DDR4-5100 (OC), max. 64GB (UDIMM) Mainboard-Erweiterungsslots PCI-Express 3.0 x16 1x M.2 1x Mainboard-Externe Anschlüsse HDMIJa USB 3.0 4x USB 2.0 2x Ethernet (LAN) 1 x 3,5mm Klinke 3x Mainboard-Interne Anschlüsse SATA 6 GB/s 4x USB 3.0 Header 1 x USB 2.0 Header 2 x RAID 0/1/5/10 Stromanschlüsse 1x 24-Pin ATX, 1x 8-Pin EPS12V Audiokanäle 7.1 Audio-Codec Realtek Mainboard-Kühlung CPU-Lüfter 4-Pin 1x Gehäuselüfter 4-Pin 1x Mainboard-Beleuchtung RGB-Header 4-Pin 1x ARGB-Header 3-Pin 1x Mainboard-Netzwerk LAN Controller Realtek Transferrate 10/100/1000/2500 Mb/s Mainboard-Besonderheiten Diagnostic LEDJa Audio+solid capacitorsJaZustand Artikelzustand Neu
67,00 €
Telebit
MB Gigabyte A520M K V2, AM4, micro ATX, 2x DDR4, AMD A520, 36mj
59,59 €
Protis
MB GBT AMD AM4 A520M K V2 1.0
A520M K V2
59,60 €
Racunala.HR
GIGABYTE A520M K V2, DDR4, SATA3, USB3.2Gen1, HDMI, AM4 mATX
BASE: AMD AM4FOR PROCESSORS: AMD RYZENFORMAT: mATX format 23.3 cm x 19.8 cm CONNECTION CHIP: AMD A520MEMORY:2 x DDR4 DIMM (5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133MHz) up to a total of 64GB capacity, dual channel support, support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, support for Extreme Memory Profile (XMP) memory modulesGRAPHICS: YES, peko APURAID: YES (0,1,10)EXPANSION SLOTS:1 x PCI Express x161 x PCI Express x1 NETWORK CARD: Realtek LAN chip (10/100/1000Mbit) SOUND CARD: Realtek codec High Definition Audio (2/4/5.1/ 7.1-channel)INTERNAL CONNECTIONS:1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x system fan header1 x M.2 Socket 3 connector4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)1 x speaker header1 x Clear CMOS jumper1 x chassis intrusion headerEXTERNAL CONNECTIONS:1 x PS /2 keyboard/mouse port1 x D-Sub port1 x HDMI port4 x USB 3.2 Gen 1 ports2 x USB 2.0/1.1 ports 1 x RJ-45 port3 x audio jacksEXTRA: iTE® I/O Controller ChipH/W MonitoringVoltage detectionTemperature detectionFan speed detectionFan fail warningFan speed controlBIOS1 x 128 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Unique FeaturesSupport for APP Center@BIOSEasyTuneSmart BackupSystem Information ViewerSupport for Q-FlashSupport for Xpress Install Bundled SoftwareNorton® Internet Security (OEM version)LAN bandwidth management software Manufacturer website: https://www.gigabyte.com/Motherboard/A520M-K-V2-rev-11#kf GIGMB-GA-A520MKV2_1
62,00 €
Racunala.HR
Gigabyte A520M K V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, up to 5100MHz DDR4 (OC), PCIe Gen3 x4 M.2, GbE LAN, USB 3.2 Gen 1
Battery Battery type: CR2032 Lithium weight per battery: 0.07 g Battery technology: Lithium-Manganese Dioxide (LiMnO2) Number of battery cells: 1 Battery weight: 3 g BIOS Clear CMOS jumper: Yes Desktop Management Interface (DMI) version: 2.7 BIOS type: UEFI AMI Expansion slots Number of M.2 (M) slots: 1 PCI Express x1 slots: 1 PCI Express x16 slots: 1 Features PC health monitoring: Temperature Audio output channels: 7.1 channels Windows operating systems supported: Windows 11 x64 Windows operating systems supported: Windows 10 x64 Motherboard chipset: AMD A520 PC health monitoring: Voltage Motherboard form factor: micro ATX PC health monitoring: Fan Motherboard chipset family: AMD Graphics HDCP: Yes Parallel processing technology support: Not supported Maximum resolution: 4096 x 2160 pixels Internal I/O EPS power connector (8-pin): Yes Chassis intrusion connector: Yes USB 2.0 connectors: 2 Front panel audio connector: Yes USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1 TPM connector: Yes Number of SATA III connectors: 4 CPU fan connector: Yes 12V power connector: Yes Front panel connector: Yes ATX Power connector (24-pin): Yes Logistics data Products per shipping (inner) case: 1 pc(s) Country of origin: China Memory Supported memory clock speeds: 4800 Unbuffered memory: Yes Supported memory clock speeds: 2400 Supported memory clock speed (max): 5100 MHz Supported memory clock speeds: 3466 Supported memory clock speeds: 5100 MHz Supported memory clock speeds: 2933 Supported memory clock speeds: 3600 Supported memory clock speeds: 4600 Supported memory clock speeds: 3400 Supported memory clock speeds: 3866 Supported memory clock speeds: 2667 Supported memory clock speeds: 3733 Supported memory clock speeds: 4400 Maximum internal memory: 64 GB Supported memory clock speeds: 2133 Memory channels: Dual-channel Number of memory slots: 2 Supported memory clock speeds: 3200 Supported memory clock speeds: 4266 Supported memory clock speeds: 4133 Supported memory clock speeds: 4000 Memory slots type: DIMM Supported memory types: DDR4-SDRAM Network Ethernet interface type: Gigabit Ethernet Ethernet LAN: Yes Wi-Fi: No Packaging content Cables included: SATA Bundled software: Norton Internet Security Batteries included: Yes Packaging data Package width: 265 mm Package height: 52 mm Package weight: 675 g Package depth: 235 mm Processor Supported processor sockets: Socket AM4 Compatible processor series: AMD Ryzen 9 5th Gen Processor manufacturer: AMD Compatible processor series: AMD Ryzen™ 3 Processor socket: Socket AM4 Compatible processor series: 3rd Generation AMD Ryzen™ 9 Compatible processor series: AMD Ryzen™ 7 Compatible processor series: AMD Ryzen™ 5 Rear panel I/O ports VGA (D-Sub) ports quantity: 1 HDMI version: 2.1 Microphone in: Yes USB 2.0 ports quantity: 2 USB connector type: USB Type-A USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4 HDMI ports quantity: 1 PS/2 ports quantity: 1 Headphone outputs: 3 Ethernet LAN (RJ-45) ports: 1 Storage controllers RAID levels: 0 RAID levels: 10 RAID levels: 1 Number of storage drives supported: 5 RAID support: Yes Supported storage drive types: HDD & SSD Supported storage drive interfaces: M.2, SATA III Technical details Warranty period: 3 year(s) Weight & dimensions Width: 233 mm Depth: 198 mm Height: 35 mm WLONONWCRAKOP
63,00 €
- Raspoloživo, isporuka odmah u trgovini
- Raspoloživo, isporuka do 2 dana po uplati
- U dolasku, po narudžbi
- Raspoloživost potrebno provjeriti
- Nije raspoloživo
