Gigabyte B760 GAMING X DDR4 (rev. 1.0) matična ploča, Socket 1170/Socket 1700, 4x DDR4, max. 128 GB, ATX
Stavi u listu želja
Postavi obavijest o cijeni
Povijest najniže cijene
Podijeli
Prijavi grešku

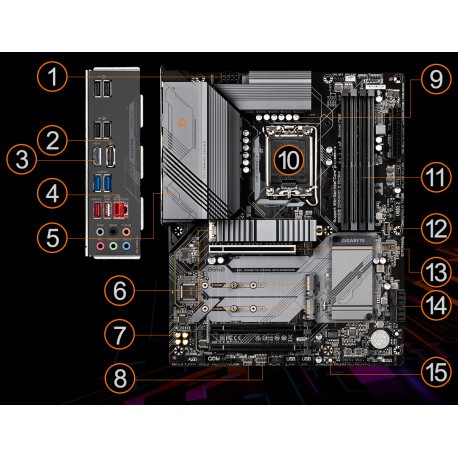

GIGABYTE B760 GAMING X DDR4 (rev. 1.0)
Matična ploča GIGABYTE B760 GAMING X DDR4 (rev. 1.0) temelji se na Intel B760 čipsetu, koji podržava 12., 13. i 14. generaciju Intel Core procesora. Ova matična ploča može biti idealan izbor za igrače i napredne korisnike koji žele izgraditi pouzdan i učinkovit sustav. Matična ploča formata ATX nudi širok raspon mogućnosti proširenja, uključujući povezivanje video kartica visokih performansi i drugih perifernih uređaja. Matična ploča B760 GAMING X DDR4 (rev. 1.0) podržava DDR4 memoriju, koja može raditi sa signalom takta do 5333 (OC) MHz koristeći četiri memorijska utora. Ova velika memorijska brzina i kapacitet (do 128 GB) omogućuje korisnicima postizanje maksimalnih performansi u igrama i drugim aplikacijama. Brzo i učinkovito upravljanje memorijom ključno je u modernim računalnim okruženjima, posebno tijekom zahtjevnih zadataka obrade grafike i podataka. Što se tiče hlađenja, matična ploča ima napredne tehnologije hlađenja, uključujući velike hladnjake i više ulaza za ventilatore kako bi se osiguralo da se komponente održavaju na optimalnoj temperaturi. Pouzdana rashladna rješenja ključna su za održavanje dugoročne stabilnosti i dobrih performansi. Mogućnosti povezivanja uključuju tri PCIe 4.0 x16 utora, koji podržavaju video kartice nove generacije, kao i nekoliko USB 3.2 priključaka za brzi prijenos podataka. Ugrađeni 2.5G LAN priključak osigurava brzu i pouzdanu mrežnu vezu, što je neophodno za glatko iskustvo igranja na mreži i podatkovno intenzivne zadatke. Sve u svemu, GIGABYTE B760 GAMING X DDR4 (rev. 1.0) izvrsna je matična ploča koja nudi visoku razinu performansi i pouzdanosti za one koji žele iskoristiti prednosti najnovijih Intel procesora. Ova je matična ploča savršen izbor za igrače i profesionalne korisnike koji ne žele kompromise u pogledu performansi svog sustava.
135,98 €
GIGABYTE B760 GAMING X DDR4 ATX matična ploča Socket 1700 M.2/HDMI/DP
139,00 €
Gigabyte B760 GAMING X, DDR4, Intel B760, s.1700
Shape factor ATX Socket Intel 1700 chipset Intel B760 CPU-Compatibility Core i-14000, Core i-13000, Core i-12000, Pentium Gold G7000, Celeron G6000 RAM 4x DDR4 DIMM, dual PC4-42666U/?DDR4-5333 (OC), max. 128GB (UDIMM) Extension slots 1x PCIe 4.0 x16, 2x PCIe 3.0 x16 (x1), 3x M.2/?M-Key (PCIe 4.0 x4, 22110/?2280) external connectors 1x HDMI 2.0 (iGPU), 1x DisplayPort 1.2 (iGPU), 1x USB-A 3.1 (10Gb/?s), 2x USB-A 3.0 (5Gb/?s), 5x USB-A 2.0 (480Mb/?s), 1x 2.5GBase-T (Realtek RTL8125BG), 6x jack Internal connectors 1x USB-C 3.1 Key-A Header (10Gb/?s), 1x USB 3.0 Header (5Gb/?s, 2x USB 3.0), 2x USB 2.0 header (480Mb/?s, 4x USB 2.0), 4x SATA 6Gb/s (B760), 1x serial, 1x TPM-Header, 1x S/?PDIF-Header Header Cooling 1x CPU fan 4-Pin, 1x CPU fan/?pump 4-Pin, 3x fan 4-Pin, 1x fan/?pump 4-Pin Header Lighting 2x 4-Pin RGB (+12V/?G/?R/?B, max. 2A), 2x 3-Pin ARGB (+5V/?DATA/?GND, max. 5A) buttons/Switches Reset-Button (internal), USB BIOS Flashback/?Q-Flash Plus (internal) Audio 7.1 (Realtek ALC897) Graphics iGPU Wireless not available RAID level 0/?1/?5/?10 (B760) Multi-GPU not available Power connections 1x 24-Pin ATX, 1x 8-Pin EPS12V VRM 9 virtual phases (8+1), 9 real phases (8+1), PWM-Controller: NCP81530R (max. 10 phases) MOSFETs CPU (VCORE) 8x 55A NCP302155 MOSFETs SoC (VCCGT) 1x 55A NCP302155 Lighting not available BIOS 1x 32MB (256Mb) Special features audio+solid capacitors, Diagnostic LED (LED indicators), 1x M.2-passive cooler, I/?O-shield integrated, onboard TPM 2.0 support (Intel PTT)
154,85 €
GIGABYTE B760 GAMING X DDR4 Mainboard
Serie - Mainboards Serie Gigabyte GAMING Serie Mainboard-Grundeigenschaften Hersteller GIGABYTE Chipsatz Intel® B760 Formfaktor ATX BIOS Typ 1x 32MB (256Mb) Mainboard-Prozessor Prozessorfamilie Intel Prozessorsockel Sockel 1700 Unterstützte Prozessoren Core i-13000, Core i-12000, Pentium Gold G7000, Celeron G6000 Mainboard-Speicher Zahl der DIMM Slots 4x DIMM-Format 288-pin DIMM Maximaler Hauptspeicher 128 GB Speichertyp DDR4 Non-ECC, Un-bufferedJa unterstützter Speichertakt bis 5333 MHz Mainboard-Erweiterungsslots PCI-Express x16 (gesamt) 3x PCI-Express 4.0 x16 1x PCI-Express 3.0 x16 2x M.2 3x Mainboard-Externe Anschlüsse DisplayPortJa HDMIJa USB 3.1 Type-A 1x USB 3.0 2x USB 2.0 5x Ethernet (LAN) 1 x 3,5mm Klinke 6x Mainboard-Interne Anschlüsse SATA 6 GB/s 4x USB 3.1 Header 1x (Typ-C) USB 3.0 Header 1 x USB 2.0 Header 2 x SeriellJa TPM-HeaderJa RAID 0/1/5/10 Stromanschlüsse 1x 24-Pin ATX, 1x 8-Pin EPS12V Audiokanäle 7.1 Audio-Codec Realtek ALC897 Mainboard-Kühlung CPU-Lüfter 4-Pin 2x Gehäuselüfter 4-Pin 3x Pumpe 4-Pin 1x Mainboard-Beleuchtung RGB-Header 4-Pin 2x ARGB-Header 3-Pin 2x Mainboard-Netzwerk LAN Controller 2.5GBase-T (Realtek RTL8125BG) Transferrate 10/100/1000/2500 Mb/s Mainboard-Besonderheiten USB BIOS FlashbackJa M.2-Passivkühler 1x Diagnostic LEDJa IO-Blende integriertJa Audio+solid capacitorsJa sonstiges Reset-Button (intern) Zustand Artikelzustand Neu
155,00 €
Matična ploča GIGABYTE B760 GAMING X DDR4
Matična ploča GIGABYTE B760 GAMING X DDR4 Osnovna svojstva matične ploče Proizvođač - GIGABYTE Čipset - Intel® B760 Faktor forme - ATX procesor matične ploče Obitelj procesora - Intel Procesorska utičnica - utičnica 1700 Podržani procesori - Core i-13000, Core i-12000, Pentium Gold G7000, Celeron G6000 memorija matične ploče Broj DIMM utora - 4x DIMM format - 288-pinski DIMM Maksimalna glavna memorija - 128 GB Vrsta memorije - DDR4 Non-ECC, Unbuffered - Da podržan takt memorije - do 5333 MHz Utori za proširenje matične ploče PCI Express x16 (ukupno) - 3x PCI Express 4.0 x16 - 1x PCI Express 3.0 x16 - 2x M.2 - 3x Vanjski priključci matične ploče DisplayPort - Da HDMI - Da USB 3.1 tip A - 1x USB 3.0 - 2x USB 2.0 - 5x Ethernet (LAN) - 1x 3,5 mm utičnica - 6x Unutarnji priključci matične ploče SATA 6Gb/s - 4x USB 3.1 zaglavlja - 1x (Tip-C) USB 3.0 zaglavlja - x1 USB 2.0 konektori - 2x Serijski - Da TPM zaglavlje - Da RAID - 0/1/5/10 Konektori za napajanje - 1x 24-pinski ATX, 1x 8-pinski EPS12V Audio kanali - 7.1 Audio kodek - Realtek ALC897 Hlađenje matične ploče CPU ventilator 4-pinski - 2x Kućišni ventilator 4-pinski - 3x Pumpa 4-pinska - 1x Osvjetljenje matične ploče RGB zaglavlje 4-pinsko - 2x ARGB konektor 3-pinski - 2x mreža matične ploče LAN kontroler - 2.5GBase-T (Realtek RTL8125BG) Brzina prijenosa - 10/100/1000/2500 Mb/s Specifičnosti matične ploče USB BIOS Flashback - Da M.2 pasivni hladnjak - 1x Dijagnostički LED - Da Integrirani IO otvor - Da Audio+solid kondenzatori - Da ostalo - tipka za resetiranje (interno) Stanje Stanje: Novo
159,00 €
1700 Gigabytes B760 GAMING X DDR4 ATX
Gigabyte B760 GAMING Gigabyte B760 GAMING X DDR4. Processor socket: LGA 1700, Compatible processors: Intel® Celeron®, Intel® Pentium® Gold. Supported memory: DDR4-SDRAM, maximum RAM memory: 128 GB, memory type: DIMM. Supported storage drive interfaces: PCI Express 4.0, SATA III, Supported storage drives: HDD & SSD, RAID level: 0, 1, 5, 10. Graphics card family: Intel, Graphics card: HD Graphics, Maximum resolution: 4096 x 2304 pixels. USB connector: USB Type-A, USB Type-C processor Processor socket: LGA 1700 Compatible processors: Intel® Celeron®, Intel® Pentium® Gold Storage Supported memory: DDR4-SDRAM Number of memory slots: 4 RAM memory maximum: 128 GB RAM type: DIMM Memory Channels: Dual Channel Without ECC: Yes Supported memory speed: 2133,2400,2666,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700 ,4800 ,4933,5000,5133,5333 MHz Unbuffered memory: Yes Storage controller Supported storage drive interfaces: PCI Express 4.0, SATA III Supported storage drives: HDD & SSD Maximum number of HDD supported: 4 RAID support: Yes RAID levels: 0, 1, 5, 10 graphic Built-in graphics adapters: Yes Graphics card family: Intel Graphics card: HD Graphics Maximum resolution: 4096 x 2304 pixels HDCP: Yes On-board graphics adapter model: Intel® HD Graphics Internal I/O ports Number of USB 2.0 interfaces: 4 USB 3.2 Gen 1 (3.1 Gen 1) Ports: 2 SATA III ports: 4 S/PDIF out connector: Yes Audio connection: Yes Front panel audio plug: Yes Front panel connector: Yes ATX power connector (24-pin): Yes CPU fan connector: Yes Number of chassis fan connectors: 3 EPS power connector (8-pin): Yes TPM connector: Yes Serial port headers: 1 RGB LED header: Yes Rear I/O ports Number of USB 2.0 ports: 5 USB 3.2 Gen 1 (3.1 Gen 1) Number of Type A ports: 2 USB 3.2 Gen 2 (3.1 Gen 2) Number of Type A ports: 1 USB 3.2 Gen 2 (3.1 Gen 2) Number of Type-C ports: 1 Number of Ethernet LAN ports (RJ-45): 1 Number of HDMI ports: 1 HDMI version: 2.0 Number of DisplayPort connections: 1 DisplayPorts version: 1.2 USB connector: USB Type-A, USB Type-C network WiFi: No Built-in Ethernet port: Yes Ethernet interface type: 2.5 Gigabit Ethernet characteristics Component for: PC Motherboard form factor: ATX Motherboard chipset family: Intel Motherboard chipset: Intel B760 Express Audio Channels: 7.1 channels PC health monitoring: fan, temperature, voltage, water cooling Supports Windows operating systems: Windows 10 x64, Windows 11 x64 Expansion slots PCI Express x16 (Gen 3.x) ports: 2 PCI Express x16 slots (Gen 4.x): 1 Number of M.2 (M) slots: 3 BIOS BIOS type: EFI AMI BIOS memory size: 256 Mbit ACPI version: 5.0 Clear CMOS jumper: Yes Desktop Management Interface (DMI) Version: 2.7 System Management BIOS (SMBIOS) Version: 2.7 Weight and dimensions Width: 305mm Depth: 244mm scope of delivery Included software: Norton® Internet Security (OEM version) LAN bandwidth management software
162,00 €
Protis
GIGABYTE Main Board Desktop B760 GAMING X DDR4
B760 GAMING X DDR4
124,70 €
Racunala.HR
Gigabyte B760 GAMING X DDR4 1.0 motherboard
BIOS Desktop Management Interface (DMI) version: 2.7 Clear CMOS jumper: Yes BIOS type: UEFI AMI Expansion slots PCI Express x16 (Gen 3.x) slots: 2 PCI Express x16 (Gen 4.x) slots: 1 Number of M.2 (M) slots: 3 Features Power source type: ATX Motherboard form factor: ATX Audio output channels: 7.1 channels PC health monitoring: Voltage PC health monitoring: Fan PC health monitoring: Water cooling Motherboard chipset family: Intel PC health monitoring: Temperature Windows operating systems supported: Windows 10 Windows operating systems supported: Windows 11 Graphics HDCP: Yes Maximum resolution: 4096 x 2304 pixels Parallel processing technology support: Not supported HDCP version: 2.3 Internal I/O RGB LED pin header: Yes Number of chassis fan connectors: 3 USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1 USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1 Serial port headers: 1 CPU fan connector: Yes Front panel connector: Yes S/PDIF out connector: Yes USB 2.0 connectors: 2 ATX Power connector (24-pin): Yes TPM connector: Yes Number of SATA III connectors: 4 EPS power connector (8-pin): Yes Front panel audio connector: Yes Memory Supported memory clock speeds: 2133 Supported memory clock speeds: 3733 Supported memory clock speeds: 4300 Supported memory clock speeds: 4400 Supported memory clock speeds: 5000 Supported memory clock speeds: 3400 Supported memory clock speeds: 3866 Maximum internal memory: 128 GB Supported memory clock speeds: 3000 Supported memory clock speeds: 5333 MHz Supported memory clock speeds: 2933 Supported memory clock speeds: 3600 Supported memory clock speeds: 3300 Supported memory clock speeds: 2400 Supported memory clock speeds: 4700 Supported memory clock speeds: 4133 Supported memory clock speeds: 4000 Supported memory clock speeds: 3666 Supported memory clock speeds: 4800 Supported memory clock speeds: 4933 Supported memory clock speeds: 3200 Supported memory clock speeds: 2666 Supported memory clock speeds: 4266 Supported memory clock speeds: 4500 Supported memory clock speeds: 3466 Supported memory clock speeds: 5133 Supported memory clock speeds: 3800 Supported memory clock speeds: 3333 Supported memory clock speeds: 4600 Supported memory clock speed (max): 5333 MHz Unbuffered memory: Yes Number of memory slots: 4 Memory channels: Dual-channel Supported memory types: DDR4-SDRAM Memory slots type: DIMM Network Ethernet LAN: Yes Ethernet interface type: 2.5 Gigabit Ethernet Packaging content Bundled software: Norton Internet Security Processor Compatible processor series: Intel® Core™ i7 Compatible processor series: Intel® Core™ i9 Compatible processor series: Intel® Pentium® Gold Processor manufacturer: Intel Compatible processor series: Intel® Core™ i3 Processor socket: LGA 1700 Supported processor sockets: LGA 1700 Compatible processor series: Intel® Core™ i5 Compatible processor series: Intel® Celeron® Rear panel I/O ports Number of USB 3.2 Gen 2 Type-A ports: 1 DisplayPorts quantity: 1 USB 2.0 ports quantity: 5 Ethernet LAN (RJ-45) ports: 1 Microphone in: Yes Line-in: Yes HDMI ports quantity: 1 Headphone outputs: 1 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2 Storage controllers Number of storage drives supported: 6 RAID support: Yes Supported storage drive interfaces: M.2, SATA III RAID levels: 1 Supported storage drive types: HDD & SSD RAID levels: 10 RAID levels: 5 RAID levels: 0 Weight & dimensions Depth: 244 mm Width: 305 mm PLYGIG1700023
137,70 €
UziShop
Gigabyte B760 GAMING X DDR4 , Gigabyte B760 GAMING X DDR4, BGA 1170, Intel® Celeron®, Intel® Pentium® Gold, DDR4-SDRAM, 128 GB, DIMM, Dvokanalni B760 GAMING X DDR4
Gigabyte B760 GAMING X DDR4. Utor za procesor: BGA 1170, Kompatibilni procesori: Intel® Celeron®, Intel® Pentium® Gold. Podržani tipovi memorije: DDR4-SDRAM, Maksimalna količina interne memorije: 128 GB, Tip memorijskih utora: DIMM. Podržana sučelja pogona za pohranu: PCI Express 4.0, SATA III, Podržani tipovi pogona: HDD & SSD, RAID tipovi: 0, 1, 5, 10. Skupina kojoj pripada grafički adapter: Intel, Grafička kartica: HD Graphics, Maksimalna razlučivost: 4096 x 2304 pikseli. Tip USB poveznika: USB Tip-A, USB Tip-C
147,80 €
Telebit
MB Gigabyte B760 GAMING X DDR4, LGA 1700, ATX, 4x DDR4, Intel B760, 24mj
150,26 €
Racunala.HR
GIGABYTE B760 Gaming X DDR4, Intel B760-Mainboard - Socket 1700, DDR4 B760 GAMING X DDR4
Motherboard form factor ATX CPU socket 1700 Motherboard Chipset Intel B760 Memory slots 4x Memory type DDR4 max. Memory 128 GB PCIe x16 slots (total) 1x PCIe x1 slots (total) 2x PCIe (4.0) x16 (mechanical) 1x PCIe (3.0) x1 2x PCI-Slots Fan connectors (4-Pin PWM) 6x LED connectors 2x RGB (4-Pin 5050 12VGRB), 2x Digital RGB (3-Pin 5VDG) SATA 6G internal 4x M.2 (PCIe 4.0 x4) 3x USB 3.1 internal 1x USB 3.0 internal 2x USB 3.1 external (Type A) 1x USB 3.0 external 2x Display connectors HDMI, Display Port RJ-45 (LAN) Ports 1x 2,5 Gbit/s Wifi & Bluetooth no Lighting no Primary colour black Secondary colour grey, silver MBGB-535-CK
174,60 €
Conrad
Gigabyte B760 GAMING X DDR4 matična ploča Baza Intel® 1700 Faktor oblika (detalji) ATX Set čipova matične ploče Intel® B760 Express
B760 GAMING X DDR4
179,99 €
