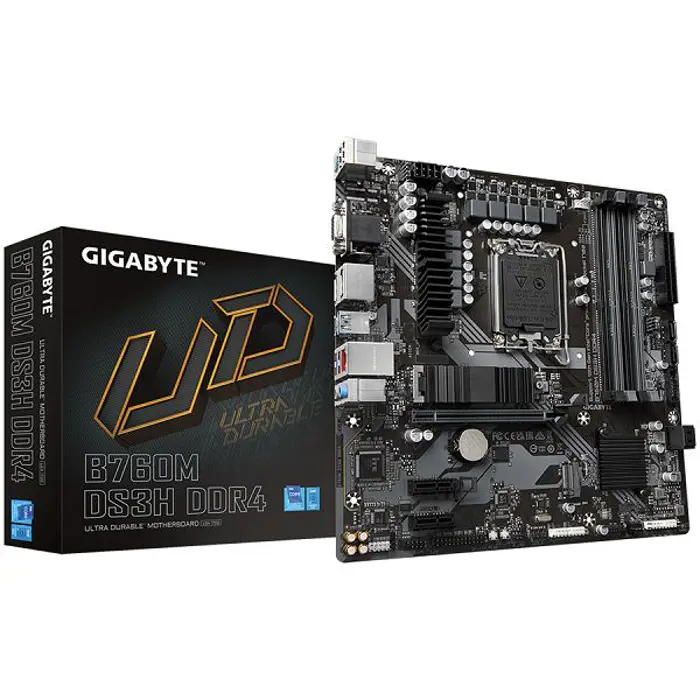

Gigabyte B760M DS3H matična ploča, Socket 1700, 4x DDR4, ATX/mATX
Stavi u listu želja
Postavi obavijest o cijeni
Povijest najniže cijene
Podijeli
Prijavi grešku
Gigabyte B760M DS3H, DDR4, Intel B760, s.1700
Form factor µATX Plinth Intel 1700 Chipset Intel B760 CPU Compatibility Core i-13000, Core i-12000, Pentium Gold G7000, Celeron G6000 RAM 4x DDR4 DIMM, dual PC4-42666U/DDR4-5333 (OC), max 128GB (UDIMM) Expansion slots 1x PCIe 4.0 x16, 2x PCIe 3.0 x1, 2x M.2/M-Key (PCIe 4.0 x4, 2280) External connections 1x VGA (iGPU), 1x HDMI 2.0 (iGPU), 2x DisplayPort 1.2 (iGPU), 1x USB-C 3.1 (10Gb/s), 3x USB-A 3.0 (5Gb/s), 2x USB-A 2.0 (480Mb/s), 1x 2.5GBase-T (Realtek RTL8125BG), 3x jack, 1x PS/2-combo Internal connections 1x USB 3.0 header (5Gb/s, 2x USB 3.0), 2x USB 2.0 header (480Mb/s, 4x USB 2.0), 4x SATA 6Gb/s (B760), 1x serial, 1x parallel, 1x TPM header, 1x S/PDIF header Header Cooling 1x CPU fan 4-pin, 3x fan 4-pin Header Lighting 1x 4-pin RGB (+12V/G/R/B, max. 2A), 1x 3-pin ARGB (+5V/DATA/GND, max. 5A) Buttons/Switches Reset-Button (internal), USB BIOS Flashback/Q-Flash Plus (internal) Audio 7.1 (Realtek ALC897) Graphic iGPU Wireless N/A RAID Levels 0/1/5/10 (B760) Multi-GPU N/A Electrical connections 1x 24-pin ATX, 1x 8-pin EPS12V VRM 8 virtual phases (6+2), 8 real phases (6+2), PWM controller: NCP81530 (max. 10 phases) MOSFETs CPU 6x 46A 4C10N/12x 4C06N MOSFETs SoC 2x 46A 4C10N/4C06N Lighting N/A BIOS 1x 16MB (128Mb) Particularities Audio+solid capacitors, 1x M.2 passive cooler, onboard TPM 2.0 support (Intel PTT)
104,88 €
GIGABYTE Mainboard B760M DS3H DDR4 - Micro ATX - Socket Intel 1700 - Intel B760, B760M DS3H DDR4
202971
105,18 €
Matična Ploča Gigabyte B760M DS3H DDR4 , Socket 1700, mATX, DDR4, B760M DS3H DDR4
• Model: B760M DS3H DDR4• Podržani procesori: LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors• Chipset Intel B760• Memorija: 4 x DDR4 DIMM• I/O konektori:• 2 x USB 2.0/1.1 ports• 1 x PS/2 keyboard/mouse port• 2 x DisplayPorts• 1 x HDMI port• 1 X D-SUB• 3 x USB 3.2 Gen 1 Type-A port• 1 x USB Type-C® port, with USB 3.2 Gen 1 support• 1 x RJ-45 port• 3 x audio jacks• Dimenzije: Micro ATX Form Factor; 24.4cm x 24.4cm
107,35 €
GIGABYTE B760M DS3H DDR4 (rev. 1.0)
GIGABYTE B760M DS3H DDR4 (rev. 1.0) je sjajna matična ploča opremljena najnovijim tehnologijama za najviše performanse. Ova matična ploča izgrađena je na Intel B760 čipsetu koji osigurava brz i učinkovit rad te je idealna za one koji žele doživjeti izvrsno iskustvo igranja i brz odziv sustava. B760M DS3H DDR4 (rev. 1.0) matična ploča dizajnirana je s GIGABYTE-ovom jedinstvenom Ultra Durable tehnologijom, koja osigurava dugoročnu stabilnost i pouzdanost. Matična ploča izrađena je od kvalitetnih komponenti koje su otporne na toplinu i prenapone pa ima dug vijek trajanja i niže temperature. Sa svoja četiri DDR4 memorijska utora, matična ploča podržava do 128 GB RAM-a, što uvelike povećava brzinu i učinkovitost računala, što je posebno važno za aplikacije i igre koje zahtijevaju velike resurse. DDR4 memorijsku tehnologiju karakterizira veća brzina, veća propusnost i manja potrošnja energije, što omogućuje iznimno brzu i učinkovitu obradu podataka. Matična ploča ima 4 SATA3 konektora i 2 M.2 konektora za pohranu podataka i brzi prijenos podataka. PCIe 4.0x16 utor na matičnoj ploči omogućuje vam korištenje performansi najnovijih video kartica i poboljšanje vašeg igračkog iskustva. Dodatno, GIGABYTE ima RGB Fusion 2.0 tehnologiju, koja vam omogućuje kreiranje prilagođenog RGB osvjetljenja, tako da možete učiniti svoj stroj jedinstvenim. GIGABYTE B760M DS3H DDR4 (rev. 1.0) matična ploča je svestran i pouzdan izbor za sve korisnike koji traže izvanredne performanse i stabilnost za svoje računalo. Bilo da igrate, radite ili konzumirate multimedijski sadržaj, ova matična ploča zadovoljava sve potrebe i omogućuje korisnicima da u potpunosti iskoriste potencijal svog sustava.
108,04 €
Matična ploča GIGABYTE B760M (DS3H DDR4, mikro ATX, Socket Intel 1700, Intel B760)
114,95 €
Matična ploča GIGABYTE B760M DS3H DDR4, Intel B760, DDR4, mATX, s. 1700 B760MDS3HDDR4
CPU: Intel Socket LGA1700 Chipset: Intel B760 Socket: 1700 Format: mATX Vrsta memorije: 4 x DIMM, DDR4 USB 2.0: 4 USB 3.0: n/a USB 3.2: 4 USB-C: 1 D-SUB: 1 DVI: n/a DisplayPort: 1 HDMI: 1 M.2: Da U.2: n/a LAN: 10/100/1000/2500 Audio: Da Bluetooth: n/a Wi-Fi: n/a
114,99 €
GigaByte MB B760M DS3H DDR4, S.1700, DDR4/5333(OC), PCIe 4.0, 2.5 G-LAN, VGA/HDMI/2×DP, USB-C, mATX; Brand: GIGABYTE; Model: ; PartNo: 4719331850876; 60544 Features - Intel Socket LGA 1700:Support 13th and 12th Gen Series Processors - Unparalleled Performance:Hybrid 6+2+1 Phases Digital VRM Solution - Dual Channel DDR4:4*DIMMs XMP Memory Module Support - Next Generation Storage:2*PCIe 4.0 x4 M.2 Connectors - M.2 Thermal Guard:To Ensure M.2 SSD Performance - EZ- Latch:PCIe 4.0x16...
120,50 €
GIGABYTE B760M DS3H DDR4 motherboard
Chipset: / Processor socket: Socket 1700 / Memory support: 4x DDR4 / Form factor: Micro-ATX Mainboard basic features Manufacturer GIGABYTE Form factor Micro ATX BIOS Type 1x 16MB (128Mb) Mainboard processor Processor family Intel Processor socket Base 1700 Supported processors Core i-13000, Core i-12000, Pentium Gold G7000, Celeron G6000 Motherboard memory Number of DIMM slots 4x DIMM format 288-pin DIMM Maximum main memory 128GB Storage type DDR4 Non-ECC, Un-buffered Yes supported memory clock up to 5333 MHz Motherboard expansion slots PCI Express x16 (total) 1x PCI Express 4.0 x16 1x PCI Express x1 2x (3.0) M.2 2x Mainboard external connections DisplayPort Yes HDMI Yes USB 3.1 Type C 1x USB3.0 3x USB2.0 2x PS/2 1x Ethernet (LAN) 1x 3.5mm jack 3x Mainboard internal connections SATA 6GB/s 4x USB 3.0 headers 1x USB 2.0 headers 2x Serial Yes TPM header Yes RAID 0/1/5/10 Power connections 1x 24-pin ATX, 1x 8-pin EPS12V Audio channels 7.1 Audio codec Realtek ALC897 Mainboard cooling CPU fan 4-pin 1x Case fan 4-pin 3x Mainboard lighting RGB header 4-pin 1x ARGB header 3-pin 1x Mainboard network LAN Controller 2.5GBase-T (Realtek RTL8125BG) Transfer rate 10/100/1000/2500 Mbps Mainboard features USB BIOS Flashback Yes M.2 passive cooler 1x Audio+solid capacitors Yes miscellaneous Reset button (internal) Condition Item condition New
122,00 €
Gigabyte B760M DS3H matična ploča Intel B760 Express LGA 1700 Mikro ATX
122,79 €
GIGABYTE B760M DS3H mATX matična ploča Socket 1700 M.2/VGA/HDMI/DP/USB Type C
130,00 €
GIGABYTE B760M DS3H mATX Mainboard Sockel 1700 M.2/VGA/HDMI/DP/USB Typ C
• mATX Mainboard mit Sockel Intel 1700 für Intel Core 13. Generation-CPU • Intel B760-Chipsatz, Intel HD Graphics Grafik • 128 GB max. RAM, DDR5 bis zu 7600MHz • 1x DisplayPort, 1x HDMI, 1x USB 3.2, 5x USB 3.0, 6x USB 2.0, 1xUSB-C • M.2 Kühler, High Res Audio, RGB Beleuchtung
143,00 €
GIGABYTE B760M DS3H
Serie - Mainboards Serie Gigabyte ULTRA DURABLE Serie Mainboard-Grundeigenschaften Hersteller GIGABYTE Chipsatz Intel® B760 Formfaktor µATX Mainboard-Prozessor Prozessorfamilie Intel Prozessorsockel Sockel 1700 Unterstützte Prozessoren Core i-13000, Core i-12000, Pentium Gold G7000, Celeron G6000 Mainboard-Speicher Zahl der DIMM Slots 4x Speichertyp DDR5 Non-ECC, Un-bufferedJa unterstützter Speichertakt 4x DDR5 DIMM, dual PC5-60800U/?DDR5-7600 (OC), max. 192GB (UDIMM) Mainboard-Erweiterungsslots PCI-Express x16 (gesamt) 3x PCI-Express 4.0 x16 1x PCI-Express 3.0 x16 2x M.2 2x Mainboard-Externe Anschlüsse DisplayPortJa HDMIJa USB 3.2 Type-C 1x USB 3.1 Type-C 1x USB 3.0 3x USB 2.0 2x PS/2 1 x Ethernet (LAN) 1 x 3,5mm Klinke 3x Mainboard-Interne Anschlüsse SATA 6 GB/s 4x USB 3.0 Header 1 x USB 2.0 Header 2 x SeriellJa TPM-HeaderJa RAID 0/1/5/10 Stromanschlüsse 1x 24-Pin ATX, 1x 8-Pin EPS12V Audiokanäle 7.1 Audio-Codec Realtek ALC1220 Mainboard-Kühlung CPU-Lüfter 4-Pin 1x Gehäuselüfter 4-Pin 3x Mainboard-Beleuchtung RGB-Header 4-Pin 1x ARGB-Header 3-Pin 1x Mainboard-Netzwerk LAN Controller Realtek RTL8125BG Transferrate 10/100/1000/2500 Mb/s Mainboard-Besonderheiten USB BIOS FlashbackJa M.2-Passivkühler 1x Diagnostic LEDJa Audio+solid capacitorsJa sonstiges Reset-Button (intern) Zustand Artikelzustand Neu
143,00 €
Racunala.HR
Matična GIGABYTE B760M DS3H DDR4, 4xDDR4, S.1700
Audio Integrated: yes , Audio Interface: 3 (3.5-mm minijack) , Audio Output Mode: 7.1 Channel Surround , BIOS Features: Gigabyte Q-Flash WfM 2.0 Support PnP 1.0a Support SMBIOS 2.7 Support 128 Mb Flash ROM DMI 2.7 Support ACPI 5.0 Support , BIOS Type: AMI , Box Weight Brutto (kg): 1.5 kg , Cable Included: 4 x SATA 6Gb/s Cables , Chipset: Intel B760 , Compliant Audio Standards: High Definition Audio , CPU Maximum Quantity Supports: 1 , CPU podnožje: Socket 1700 , Data Link Protocol Supports: 2.5 Gbps Gigabit Ethernet , Device Location: Integrated , DisplayPort: 2 , EAN Code: 4719331850876 , Form Factor: Micro ATX , HDMI: 1 (HDMI (Type A)) , Height (mm): 244 mm , Included Accessories: User Guide Screws , Integrated: Storage Controller:Supports: Level 0, Level 1, Level 10, Level 5SATA III-600 (4)Storage Controller:PCI Express 4.0 x4 (2 x M.2 (Key M)) , LAN Integrated: yes , LAN: 1 (RJ-45) , Mainboard Features: RGB LED , Maximum Installable System Memory Storage Capacity: 128 GB , Memory Features: Unbuffered Dual Rank Single Rank XMP , Memory Form Factor: DIMM 288-pin , Memory Slot Total Quantity: 4 , Memory Speed: 2133MHz(PC4-17000) 2400MHz(PC4-19200) 2666MHz(PC4-21300) 2933MHz(PC4-23400) 3000MHz(PC4-24000) 3200MHz(PC4-25600) , Pack Weight Brutto (kg): 0.95 kg , Pack Weight Netto (kg): 1.2 kg , Package Type: Retail , Packs in Box: 10 , PCI Express 3.0 x1: 2 , PCI Express 4.0 x16: 1 , Pieces in pack: 1 , Provides Error Checking Method: Non-ECC , PS/2: 1 , Retail Packaging Net Weight Carton: 0.2 kg , Retail Packaging Net Weight Plastic: 0.1 kg , Software Included: Norton Internet Security (OEM version) , Supported Operating System: Microsoft Windows 10 64-bit Microsoft Windows 11 64-bit , Supports Central Processor Unit: Intel 12th Gen Processors Intel 13th Gen Processors Intel 14th Gen Processors , USB 2.0: 2 (USB 2.0 (type A)) , USB 3.2 Gen 1: 3 (USB 3.2 (type A)) , USB 3.2 Gen 2: 1 (USB 3.2 (type C)) , VGA: 1 (15-pin D-sub) , Video Chipset: Intel HD Graphics , Video Controller Integrated: yes , Vrsta memorije: DDR4 SDRAM , Warranty Products Returnable: Yes , Warranty Term (month): 36 month(s) , Warranty validation Criteria: Serial Number , Width (mm): 244 mm B760M DS3H DDR4
115,00 €
Protis
GIGABYTE B760M DS3H, DDR5, SATA3, USB3.2Gen2, DP, LGA1700 mATX
B760M DS3H
119,80 €
UziShop
Gigabyte B760M DS3H DDR4 , Gigabyte B760M DS3H DDR4, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, DDR4-SDRAM, 128 GB B760M DS3H DDR4
Gigabyte B760M DS3H DDR4. Proizvođač procesora: Intel, Utor za procesor: LGA 1700, Kompatibilni procesori: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Podržani tipovi memorije: DDR4-SDRAM, Maksimalna količina interne memorije: 128 GB, Tip memorijskih utora: DIMM. Podržana sučelja pogona za pohranu: M.2, SATA III, Podržani tipovi pogona: HDD & SSD, RAID tipovi: 0, 1, 5, 10. Maksimalna razlučivost: 4096 x 2304 pikseli. Vrsta Ethernet sučelja: 2.5 Gigabit Ethernet
122,35 €
Conrad
Gigabyte B760M DS3H DDR4, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, DDR4-SDRAM, 128 GB Gigabyte B760M DS3H DDR4 matična plo...
B760M DS3H DDR4
134,99 €
Telebit
MB Gigabyte B760M DS3H, LGA 1700, micro ATX, 4x DDR5, Intel B760, 36mj
137,64 €
